High Level High Position Bag Fully Automatic Robotic Palletizing System

Product Categories
Henan VPEKS Automation Machinery Co.,Ltd
Contact Now

High Level High Position Bag Fully Automatic Robotic Palletizing System

Place of Origin : Henan, China

Brand Name : VPEKS

Packaging Details : plywood case

Supply Ability : 200 Set/Sets per Month

Price : $10,000.00/sets >=1 sets

Type : Packaging Line

Applicable Industries : Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Advertising Company, cement industry, Animal feed

Showroom Location : United Kingdom, United States, Italy, France, Philippines, Mexico, Russia, Thailand, Romania, South Africa, Kazakhstan, Australia

Condition : New

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, Animal Feed

Packaging Type : Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case

Packaging Material : Plastic, Paper

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Can be customized

Weight : 2233 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate Save Space Low cost High speed

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 2 Year

Core Components : Bearing, Motor, Pump, PLC, Pressure vessel

Model : VPK-GWZ

Power Source : 3 phase

Palletizing Speed : 500 to 700 bags per hour

Power : 13kw

Air Source pressure : 0.8 Mpa

Suitable pallet size : L1000~1200*W1000~1200mm

Air Cylinder Brand : AirTac Made in Taiwan

Electric components : Schneider

Port : Qingdao, shanghai

Contact Now

Product Overview

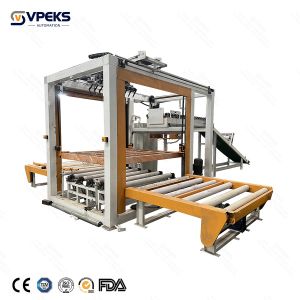

VPK-GWZ High Level High Stage Automatic Bag Palletizing line
This High Level palletizing system is good for palletizing 5kg to 50kg bags, case, carton, etc. It is made up of feeding belt conveyor(with bag shaping system), High Level grippers, Hydraulic pallet loading platform, PLC cabinet. The speed of it could be 500bags to 700bags per hour.
FEATURES AT A GLANCE
High Efficiency
Fully Automatic
Cost-effective
Easy to install and operate
2 Years Warranty
Internation brand components
Door to Door shipping for most countries
High Level High Position Bag Fully Automatic Robotic Palletizing System
High Level High Position Bag Fully Automatic Robotic Palletizing System
Fast speed palletizing
High Level High Position Bag Fully Automatic Robotic Palletizing System
Certificates
High Level High Position Bag Fully Automatic Robotic Palletizing System
PLC cabinet
PRODUCT SPECIFICATIONS
Item Model
VPK-GWZ High Level palletizer
Power
13kw, Three phase 380V/50HZ(can be customized)
Applicable raw materials
Fertilizer, feed, flour, rice, plastic pellets, seeds, washing powder, cement, dry powder mortar, talc powder, slag aggregating
agent, etc.
Suitable pallet size
L1000~1200*W1000~1200mm
Height of final pallets
1300 to 1500mm(accept specially customizing)
Palletizing Speed
500-700bags/hour
Required air supply
≥0.01m3/h
Servo Motor
XINJIE
Air Cylinder
AIRTAC/SNS
Pneumatic solenoid valve
AIRTAC
Senors
OMRON
PLC
Siemens
Electric components
Schneider
PRODUCT CONFIGURATION
High Level High Position Bag Fully Automatic Robotic Palletizing System
Grippers made from composite materials
High Level High Position Bag Fully Automatic Robotic Palletizing System
Suitable for picking bags, carton, barrels, etc
High Level High Position Bag Fully Automatic Robotic Palletizing System
Suitable for different layers
Product packaging
High Level High Position Bag Fully Automatic Robotic Palletizing System
High Level High Position Bag Fully Automatic Robotic Palletizing System
High Level High Position Bag Fully Automatic Robotic Palletizing System
Why Choose Us
1.Integrated solution for packing & palletizing 2.Overseas after-sales service centers 3.Professional online guidance and on-site installation 4.Easy-to-use operating systems for all machines 5.International brands for all the components 6.More than 15+ years of experience in automation field 7.In time and long term warranty
